IoT 저전류 측정 솔루션



Keysight CX3322A, CX3324A?[제품 보러가기]

Device Current Waveform Analyzer

Precise low-level current measure for Low Power and IoT Device

?iot1

Key Features

  1. 14/16bit Dynamic Ranges Display Clearly even very Low-level Current Waveforms.
  2. Precisely Capture Current Waveforms from 100pA to 10A.
  3. Up to 200 MHz Bandwidth and a 1 GHz Sampling Rate
  4. 4Ω Equivalent Current Sensor Resistance minimize Voltage Drop
  5. Intuitive 14.1” Multi-touch Screen GUI and familiar Oscilloscope-like Trigger Functions
  6. Innovative “Anywhere” Zoom and ”Automatic Power and Current Profiler” Functions



스마트폰과 인터넷 기술의 발달은 IoT 및 NVM 등의 신기술의 발전을 촉진하고 있으며 웨어러블 디바이스, 센서, 무선네트웍, 전기자동차 등과 같은 커넥티드 제품으로 영역을 확장하고 있습니다. 이러한 IoT 디바이스 설계의 최대 당면 과제 중 하나는 제한된 소형 배터리의 수명입니다. 배터리 수명을 최대한 연장하기 위해 IoT 디바이스의 전력 소비 패턴을 정확하고 정밀하게 분석하는 작업은 매우 중요한 요소입니다. 또한 스마트폰 기술의 발전에 따라 NVM(Non Volatile Memory)에 대한 수요가 확대되고, IoT 디바이스의 확장도 NVM 적용을 가속화 하고 있습니다.

키사이트 CX3300A 시리즈 커런트 웨이브폼 어날라이저가 제공하는 Ultra-Wideband 저전류 측정 기법은 uS보다 빠르고 uA보다 낮은 AC 측정을 가능하게 하며, 저전류 디바이스의 동작 특성과 임피던스 변동 특성을 이해할 수 있도록 도와드립니다.

전통적인 오실로스코프 및 전류프로브 측정 방식의 높은 노이즈 레벨은 최신 IoT 디바이스가 요구하는 uA 레벨의 저전류를 측정할 수 없으며, SMU/DMM의 제한된 밴드위스 및 낮은 샘플레이트 성능은 IoT 디바이스의 동적 전류 특성을 세밀하게 측정할 수 없습니다.

CX3322A, CX3324A는 14/16bit DAC, 200MHz 밴드위스, 1GSa/s 샘플레이트 성능으로 기존 전류프로브 및 SMU/DMM이 측정할 수 없었던 동적 저전류 측정이 가능합니다.

* 응용 분야

  • Battery powered mobile and wearable devices
  • Low power wireless/communication/IoT chip
  • MCU/ SoC/IP core
  • ESD (Electro-Static-Discharge) test
  • Non-volatile memory (NVM) characterization
  • Time varied parameter characterization of materials and devices etc.



iot2

* 그림1. 오실로스코프/전류프로브 vs. CX3324A 저전류 측정 비교



?- 150uA and 1.5uA Dynamic Current behavior can be separated from noise floor

iot4

* 그림2. NVM Dynamic Current Change measurement

– Capture Fast Transient Current with up to 1GSa/s Sampling Rate

iot5

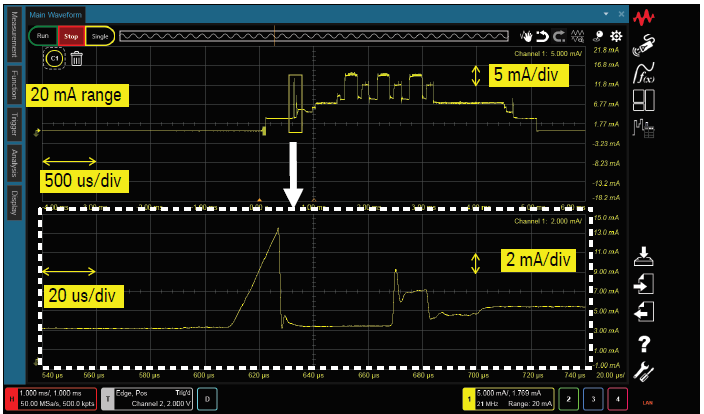

* 그림3-1. BLE(Blue-Tooth Low Energy) low current capture

– Capture Long-term behaviors with up to 256M memory

iot6

* 그림3-2. BLE(Blue-Tooth Low Energy) low current capture



iot7

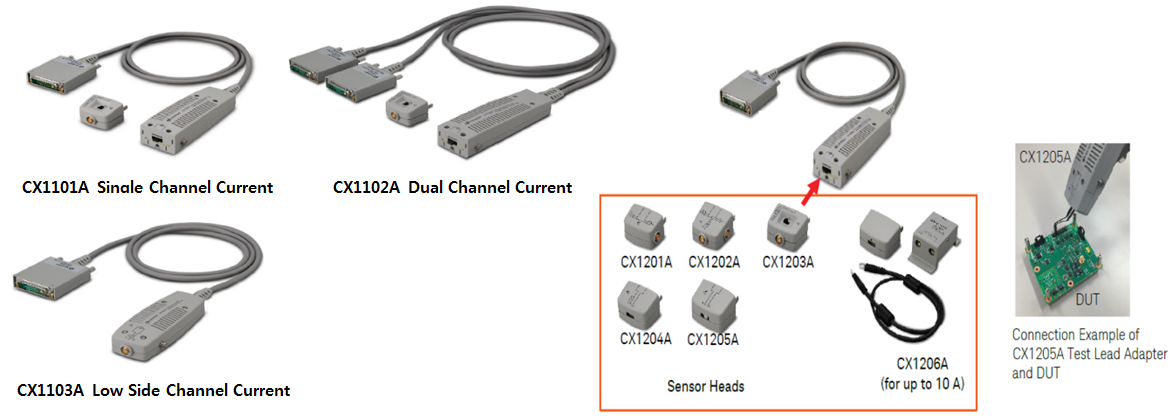

* 그림4. Current Sensor Family

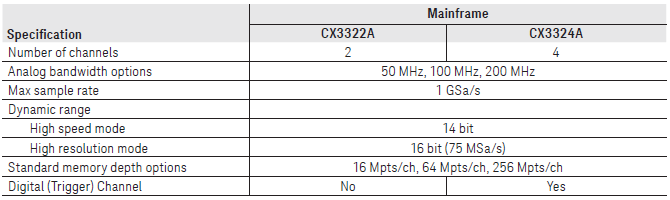

* CX3300A 시리즈 주요 사양
